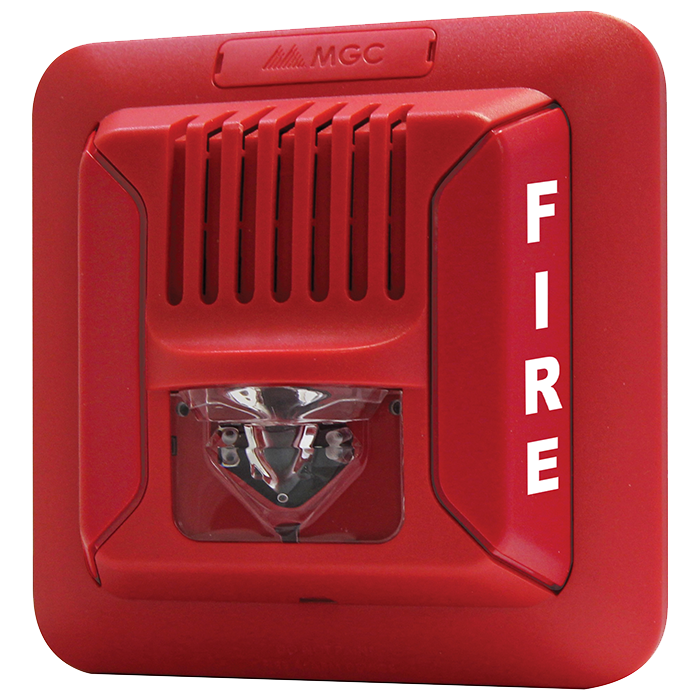

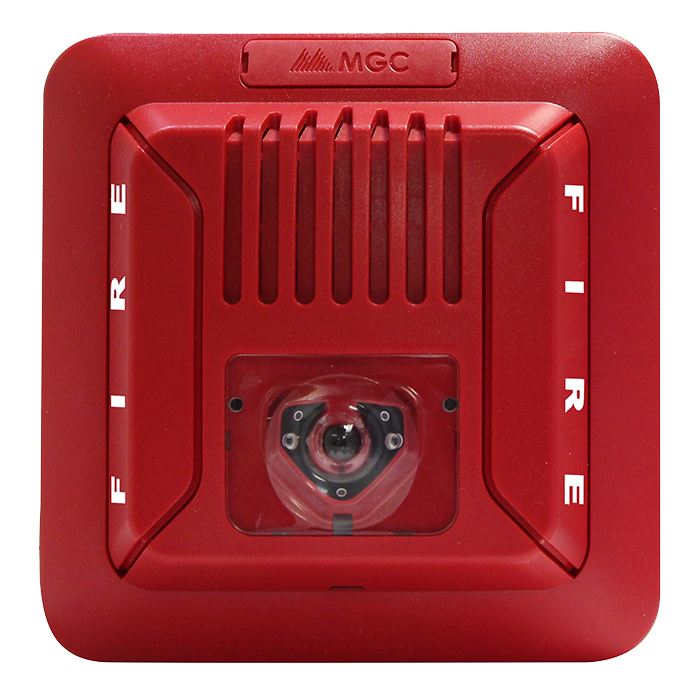

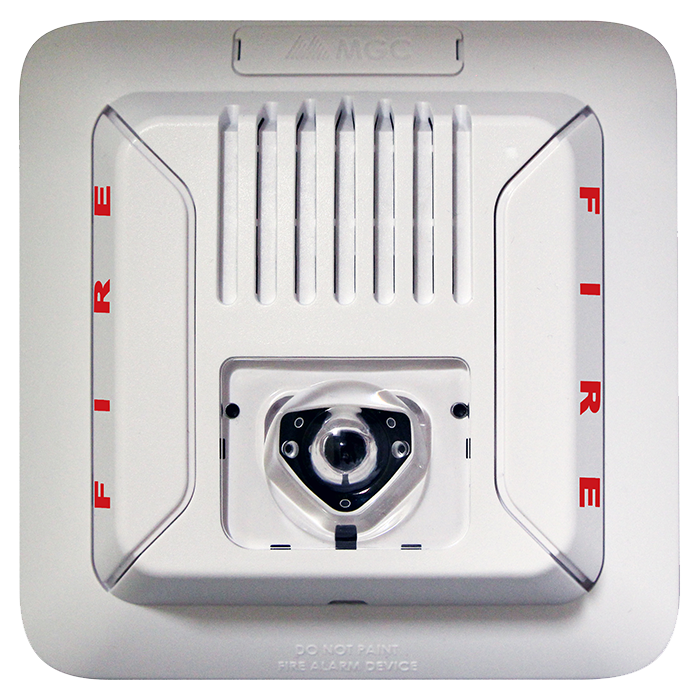

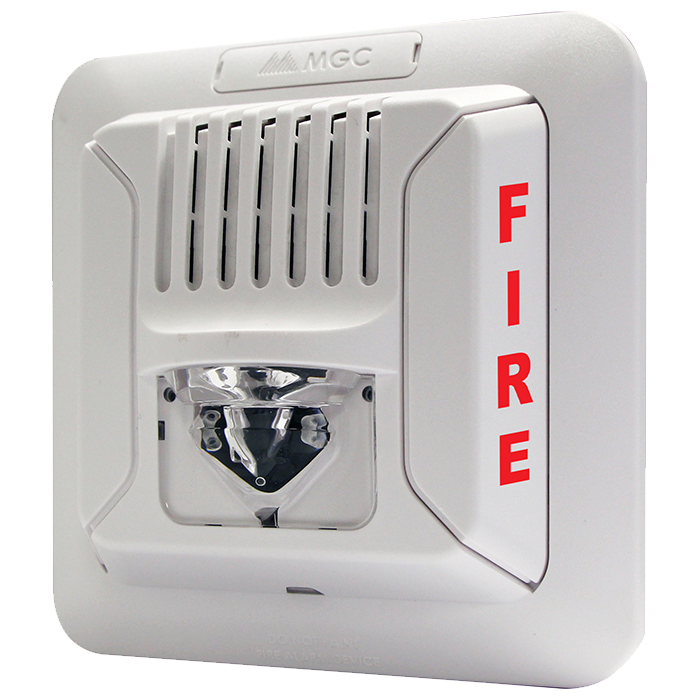

The FHS-400 horn/strobes offer a wide range of audible/visual settings in a single compact device. The audible settings include Temporal, Continuous, March Time and 20 BPM tones that can each be set for Low or High volume settings. The candela settings can be field-configured for 15, 15/75, 30, 75, 110, 185 cd. The candela setting is displayed through the front window for easy identification All device settings are located on the back of the unit to prevent tampering.
Features:
• Compact Design
• Advanced LED technology provides superior current draw performance
• Lower power consumption per device allows for more notification appliances per circuit and reduces the need for external power supplies
• Standard and High candela settings in one unit to meet virtually any application - 15, 15/75, 30, 75, 110, 185 cd
• Multiple field-selectable audible settings
- Temporal, Continuous, March Time and 20 BPM audible tones
- High and Low volume settings
• Red or white finish
• Device settings are located on the back of the unit to prevent tampering
• Includes shorting clip that allows installers to test the wiring before the device is installed
• Supports 12 to 22 AWG
• Mount to Mircom BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
• All units include universal mounting plate
• For indoor applications
