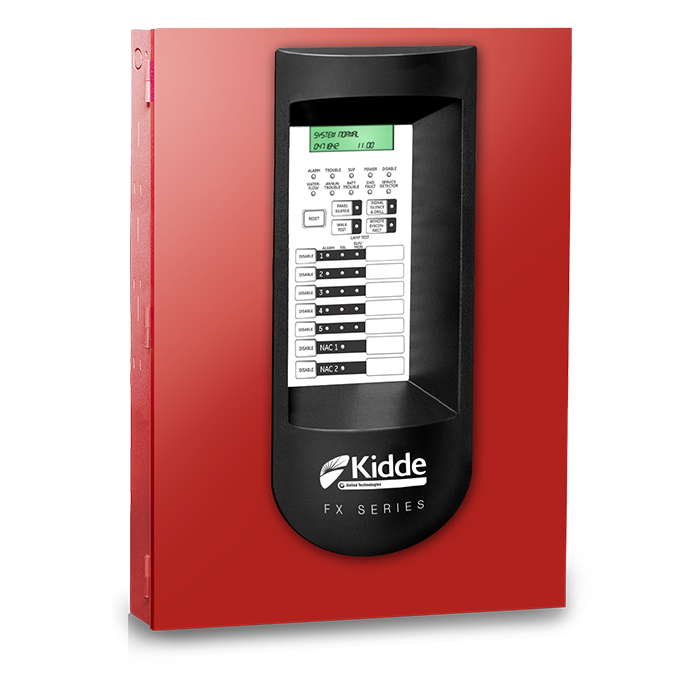

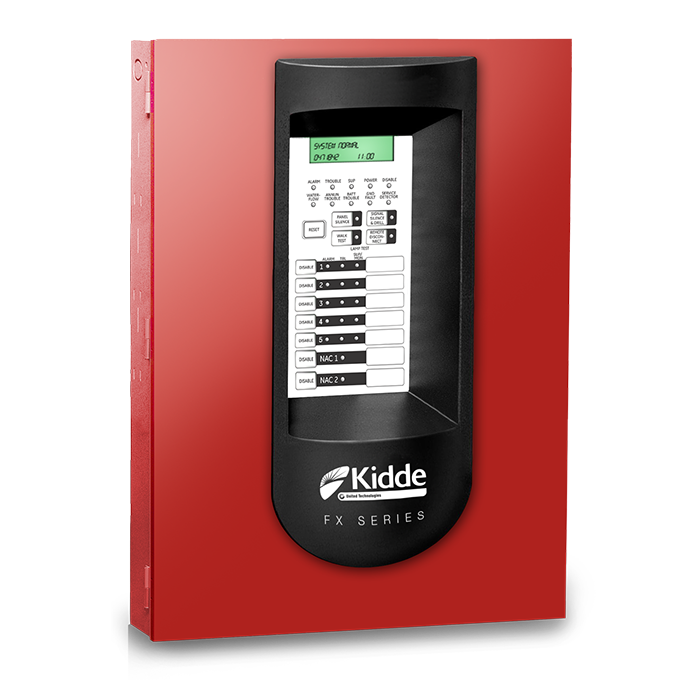

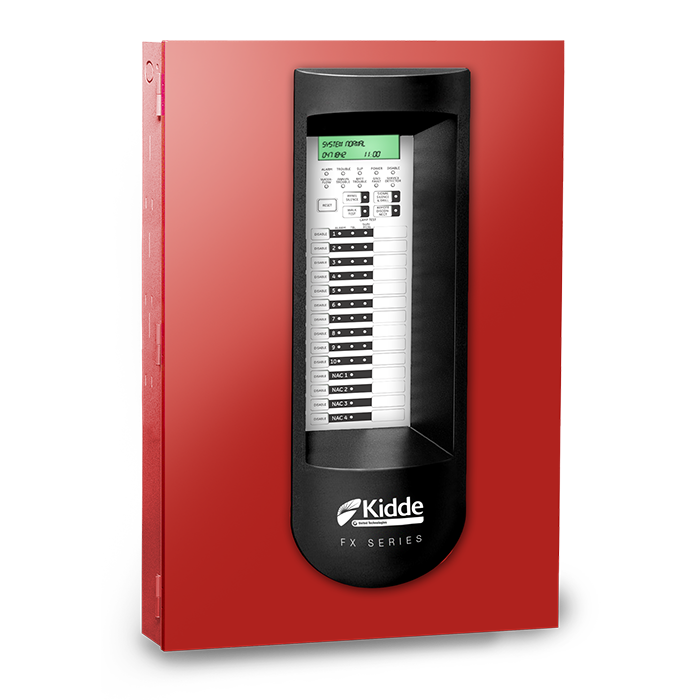

Kidde brand conventional fire alarm systems consist of 5 and 10 zone fire alarm control panels (FACP), an optional integrated upload/download DACT (dialer), intelligent/analog type detector features, serial annunciator modules, and serial remote relay modules. All FACPs and components are Listed to the 10th edition of the ANSI/UL 864 standard and CSFM/FDNY approved.
Features:
• Available in 5 and 10 zone (IDC) models
• CleanMe® feature provides remote annunciation of a dirty detector
• Automatic drift compensation with select detectors reduces false alarms and extends dust life
• Listed to ANSI/UL 864 10th Edition
• Models with fully integrated upload/download DACT enables PC programming
• Zone or NAC pairs convertible to single Class A circuits
• Combination Waterflow and Supervisory IDCs
• NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded
• Front panel programmable simplifies installation and servicing
• Precision synchronization with compatible notification appliances and optional audible silence over two wires
• On-board relays for Alarm, Supervisory and Trouble
• Optional serial bus relay modules are programmable for Common, Zone, or Matrix activation
• Optional serial bus remote annunciator family
• One person walk-test (audible or silent)
• Optional City Tie and Reverse Polarity Modules
• Trim ring available for semi-flush mounting
