Lead Acid Battery Tester w/ CELLCASE

SKU :
CELLCHECK
PRODUCT SPECIFICATIONS
DESCRIPTION
PRODUCT SPECIFICATIONS

Cellchecker™ is ideal for testing fire and security alarm systems sealed lead acid batteries. Using pulse load technology it provides a comprehensive test of a battery’s state of charge and condition and identifies weak or failing batteries. It tests battery performance – not just voltage/internal resistance.

Testing Capacity (models):
• 2-volt (2-25AH)
• 4-volt (2-25AH)
• 6-volt (1-4AH, 5-15AH, 16-50AH, 20-100AH, 50-200AH)
• 8-volt (2-20AH, 20-100AH)
• 12-volt (1-4AH, 5-15AH, 16-50AH, 20-100AH, 50-200AH)

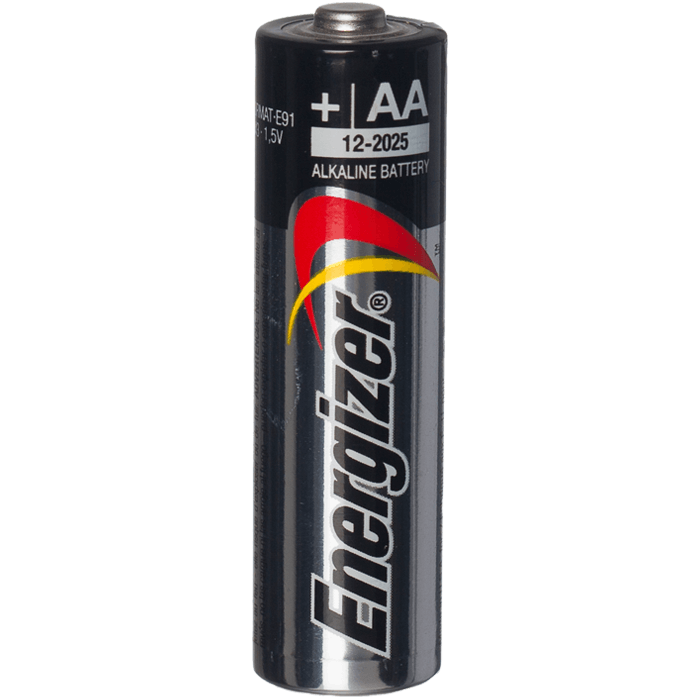

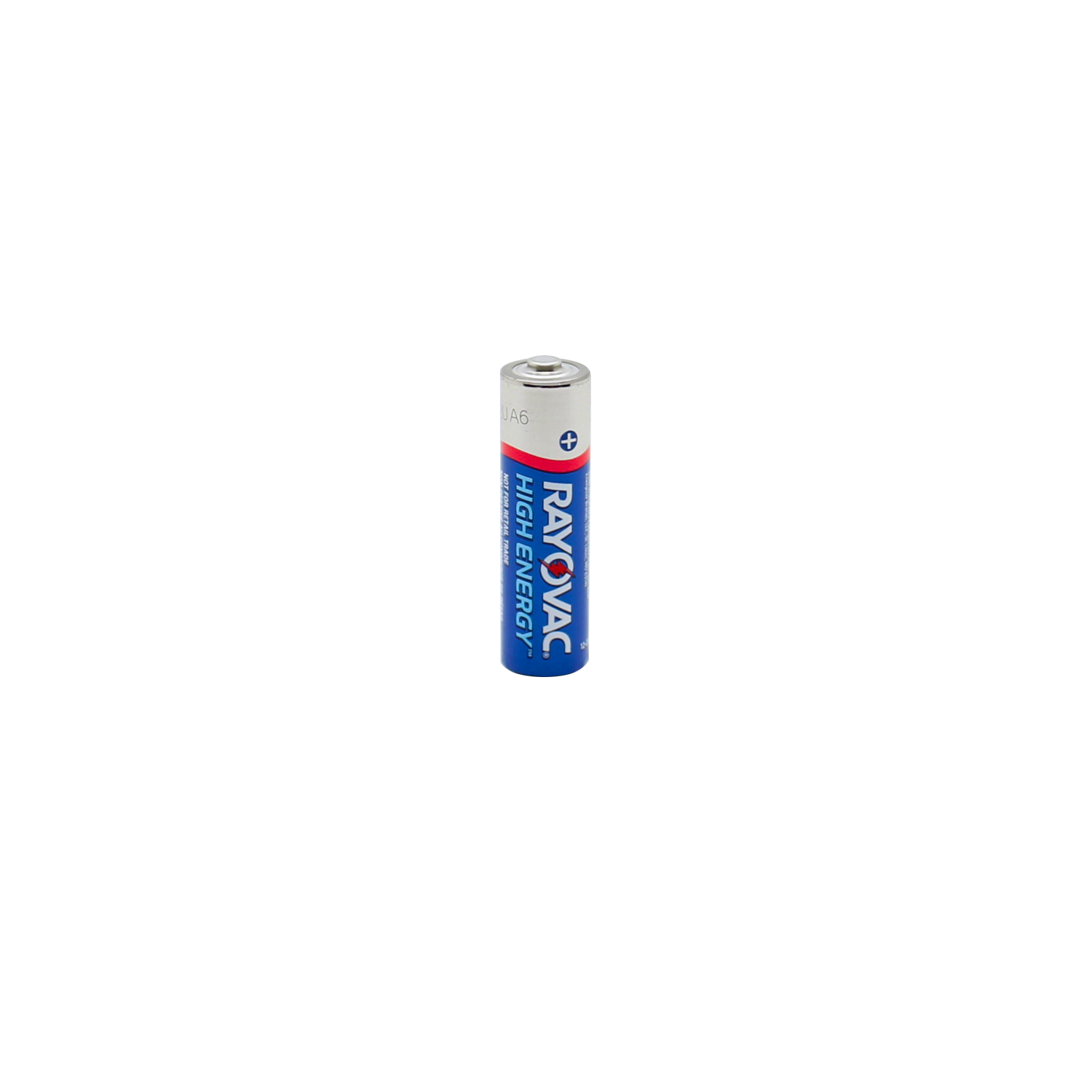

• 4 x AA batteries (not included)
• Hard Case and CellCase (soft Technician's Case Included
• Test Duration: Approximately 15 seconds

add to quote
PRODUCT SPECIFICATIONS
SUPPORTING DOCUMENTS
ADDITIONAL NOTES

ADDITIONAL NOTES

The unit does come calibrated from the factory and the certificate is included. It does not require calibration annually. The only maintenance we really recommend is periodic cleaning of the tester's contact terminals, including the negative probe tip. Clean all tester terminals with a soft cloth and 91% isopropyl alcohol (Never use abrasives, such as a pencil eraser, to clean terminals). Isopropyl alcohol will not harm the tester's faceplate or enclosure. Clean contact terminals help insure a good electrical connection during the Pulse Load test cycle, which is important for accurate test results.
