| SKU |
|---|
| FX-IDC2B |
| FX-IDC1A |
| FX-IDC1B |
| FX-2WIRE |
| FX-IDCWS |
| FX-ISO |
| FX-NAC |
| FX-RLY |

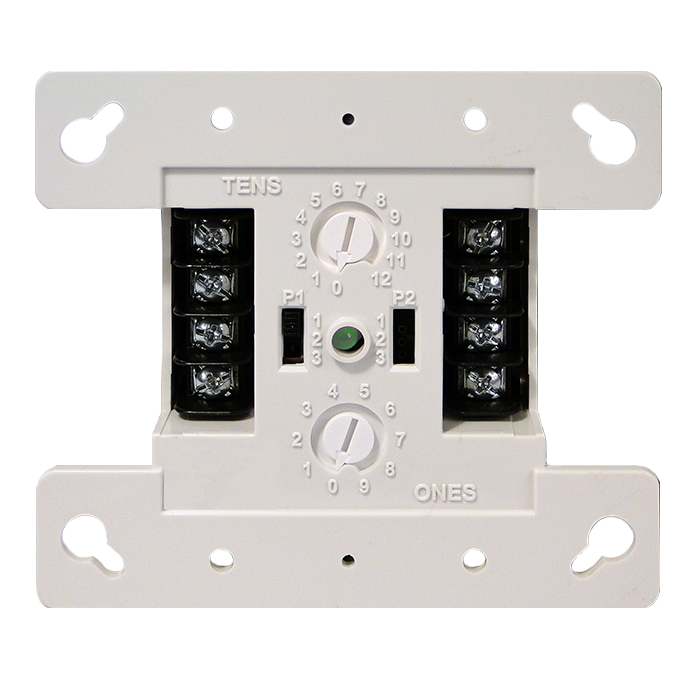

The FX-IDC2B connects two normally open, alarm, supervisory, or monitor type dry contact initiating device circuits (IDCs) to the Kidde control panel. This module is designed for Class B circuit operation.
The device address is set using the two rotary switches located on the front of the module. Two consecutive addresses are required. The second address is automatically assigned one number higher than the value set on the rotary switches.
