Surface Mount Hose and Extinguisher Cabinet

Surface Mount Hose and Extinguisher Cabinet

SKU :
HCS2
Model:
Elite Architectural Hose and Extinguisher Cabinets
PRODUCT SPECIFICATIONS
DESCRIPTION
PRODUCT SPECIFICATIONS

Elite Series 30 x 30 x 8 Surface Mount Hose and Extinguisher Cabinets accommodate 1-1/2" to 2-1/2" valve plus 50, 75 or 100 ft hose. Cabinets also accommodates all sizes of dry chemical extinguishers or a pressure water extinguisher. Removable Frame for Left/Right Door Swing

• Standard with 14 ga. Door and Trim, 18 ga. Tubs
• Grey Baked Enamel Finish
• Full Length Piano Hinges, Stainless Steel Flush Door Latch
• Removable Frame for left or right door swing
• Full viewing panel (24” x 24” acrylic panel, #A2424 sold separately)
• Glass clips included

add to quote
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
SUPPORTING DOCUMENTS
ADDITIONAL NOTES
SKU Style Max Extgr H (In.) Ship Weight (lbs) Turnback (In.) Min Wall Depth (In.) Front Type Glass Size (In.) Door & Trim Tub Door Lock
HCS2 Surface Mount Up to 20 lb Dry Chem or PW 41 n/a n/a Full Glass 24 x 24 14 ga. 18 ga. Flush SS Paddle Latch
HCR1 Fully-Recessed Up to 20 lb Dry Chem or PW 41 0.5 8 Full Glass 26 x 26 14 ga. 18 ga. Flush SS Paddle Latch
Product Spec Sheet

OPTIONS

• White finish

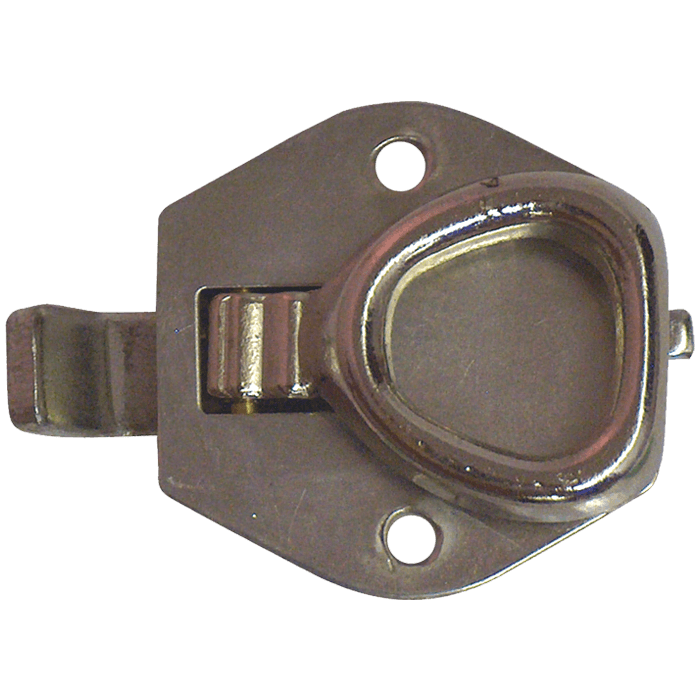

• Lockable Paddle Latch
