4" Waterflow Detector

SKU :
WFD40NA
Model:
System Sensor WFDNA Series
PRODUCT SPECIFICATIONS
DESCRIPTION
PRODUCT SPECIFICATIONS

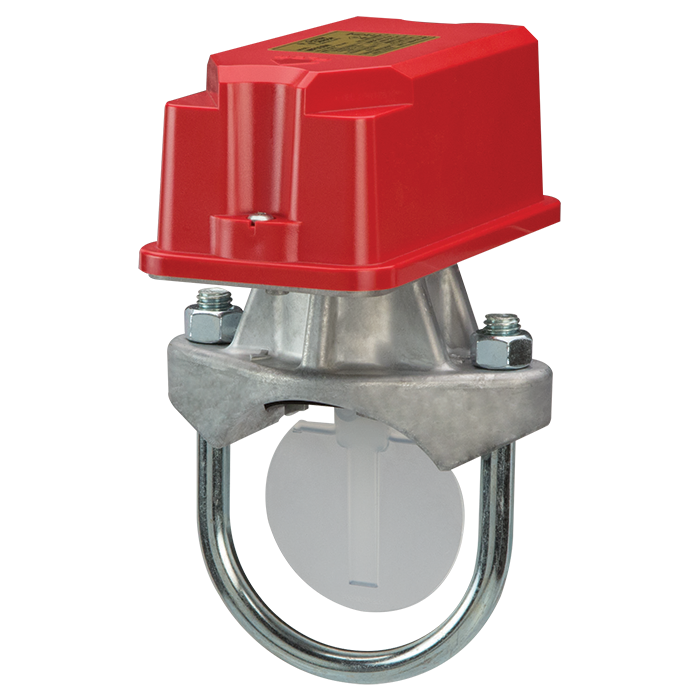

The WFD40NA is a waterflow detector for use with 4" pipe.

• NEMA 4 rated
• Audible and visual switch activation
• Switch Synchronization activates both alarm panel and local bell
or horn strobe
• Tamper-resistant cover screws
• Fits Schedule Piping 7 through 40
• Pipe Size 4" / Hole Size 2"

add to quote
Certifications
ULC Factory Mutual
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
SUPPORTING DOCUMENTS
SKU Listing Hole Size (In.) Pipe Size (In.) Other Switch Type Enclosure Rating
WFD40NA ULC, FM 2 4 7 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD20NA ULC, FM 1-1/4 2 7 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD25NA ULC, FM 1-1/4 2-1/2 7 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD30NA ULC, FM 2 3 7 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD50NA ULC, FM 2 5 10 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD60NA ULC, FM 2 6 10 thru 40 Schedule Pipe 2 x SPDT NEMA 4
WFD80NA 2 8 10 thru 40 Schedule Pipe 2 x SPDT NEMA 4
