FireDETEC Indirect Systems feature Innovative Tube Technology. FireDETEC systems are a ready mode and highly cost-effective fire suppression system which, when using our simple four-step system calculation guide, you can install directly into any high-risk machinery or equipment. FM Approved to NFPA 2001 Standard on Clean Agent Fire Extinguishing Systems.
Applications: Electrical Circuitry, Machinery, Oils, Chemicals & Open Flame Equipment

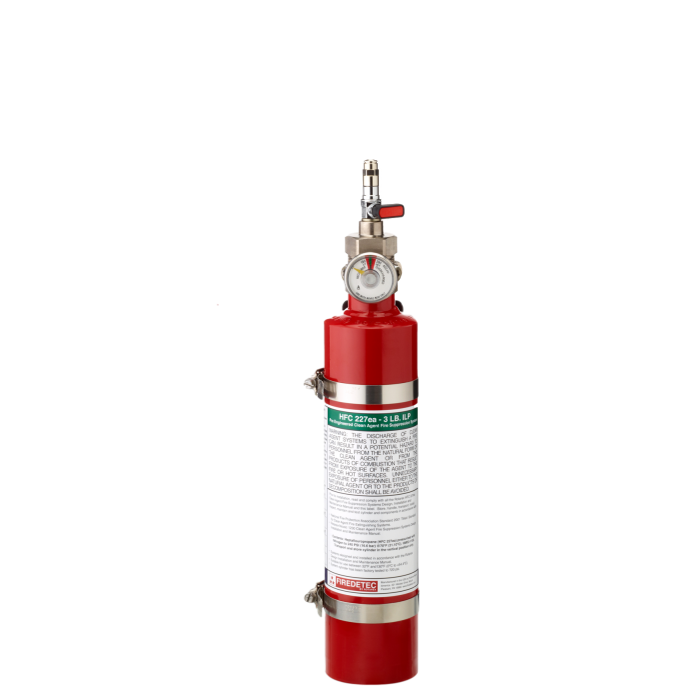

• FM200 Clean Agent
• 3 lb Single Nozzle System
• The tube is pressurized at 16 bar/240 psi (same pressure as the cylinder)
• Heat from a fire causes the tube to burst at 230° F/110° C. This pressure release actuates the valve
• The suppression agent floods the enclosure in less than 10 seconds
• Fire is suppressed moments after it begins
| SKU | Applications | Max Vol Protected Non-Marine (cu. Ft) | Listing | Height (In.) | Dia. (In.) | Temp Range |
|---|---|---|---|---|---|---|
| B07014500 | Electrical Cabinet, CNC, Fume Hoods | See Install or Pocket Guide | FM Approved | 12.43 | 2.93 | 32F to +130F (0 C to +54.4C) |
| B07014501 | Electrical Cabinet, CNC, Fume Hoods | See Install or Pocket Guide | FM Approved | 11.17 | 4.99 | 32F to +130F (0 C to +54.4C) |
| B07014502 | Electrical Cabinet, CNC, Fume Hoods | See Install or Pocket Guide | FM Approved | 14.14 | 6.14 | 32F to +130F (0 C to +54.4C) |
