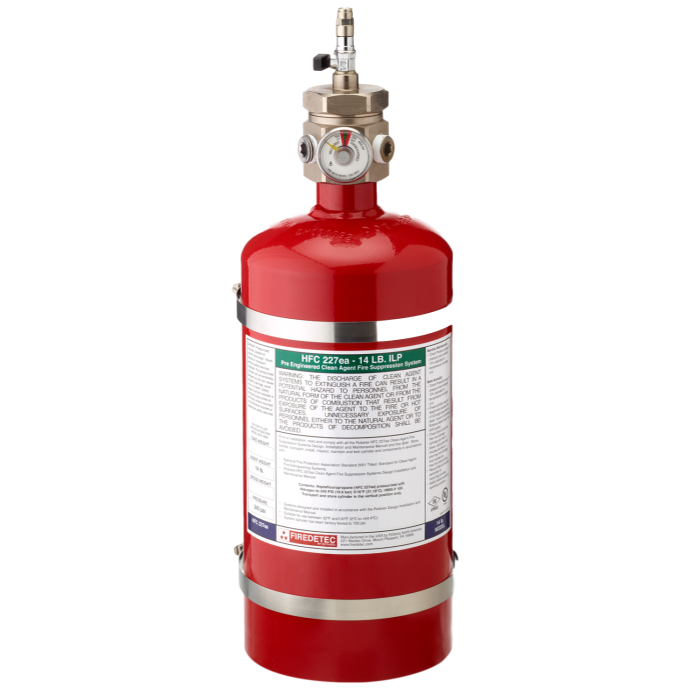

14 lb. System FM200

SKU :

B07014502

Model:

FireDetec System Kits

PRODUCT SPECIFICATIONS

DESCRIPTION

PRODUCT SPECIFICATIONS

FireDETEC Indirect Systems feature Innovative Tube Technology. FireDETEC systems are a ready mode and highly cost-effective fire suppression system which, when using our simple four-step system calculation guide, you can install directly into any high-risk machinery or equipment. FM Approved to NFPA 2001 Standard on Clean Agent Fire Extinguishing Systems.

Applications: Electrical Circuitry, Machinery, Oils, Chemicals & Open Flame Equipment

• FM200 Clean Agent
• 14 lb System (Single or Double Nozzle configuration available)
• The tube is pressurized at 16 bar/240 psi (same pressure as the cylinder)
• Heat from a fire causes the tube to burst at 230° F/110° C. This pressure release actuates the valve
• The suppression agent floods the enclosure in less than 10 seconds
• Fire is suppressed moments after it begins

add to quote

Certifications

PRODUCT SPECIFICATIONS

SUPPORTING DOCUMENTS

SKU	Applications	Max Vol Protected Non-Marine (cu. Ft)	Listing	Height (In.)	Dia. (In.)	Temp Range
B07014502	Electrical Cabinet, CNC, Fume Hoods	See Install or Pocket Guide	FM Approved	14.14	6.14	32F to +130F (0 C to +54.4C)
B07014500	Electrical Cabinet, CNC, Fume Hoods	See Install or Pocket Guide	FM Approved	12.43	2.93	32F to +130F (0 C to +54.4C)
B07014501	Electrical Cabinet, CNC, Fume Hoods	See Install or Pocket Guide	FM Approved	11.17	4.99	32F to +130F (0 C to +54.4C)

Installation Manual

Sales Sheet

System Choice Guide

FM200 MSDS

Electrical Cabinet Application

CNC Cabinet Application

Fume Cabinet Application

FM Certificate

14 lb. System FM200

RELATED PRODUCTS

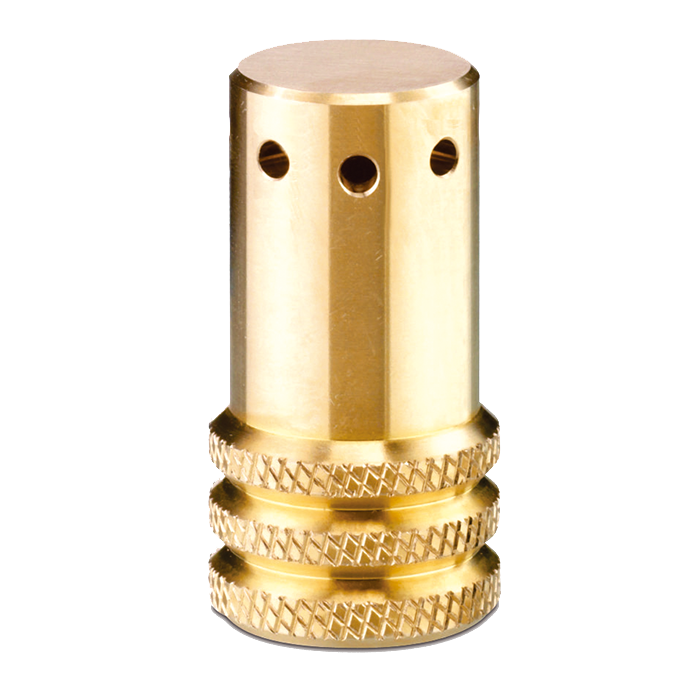

1/2" Nozzle 14lb, 1 Nozzle System
